Z Steel Frame 3mm 18.5kw Purlin Roll Forming Machine

Name: Z Steel Frame 3mm 185kw Purlin Roll Forming Machine
Brand: DingBo
Price: 1 USD

Wholesale Z Steel Frame 3mm 18.5kw Purlin Roll Forming Machine from china suppliers

Brand Name : DingBo

Model Number : DBCZ

Certification : CE, ISO, SGS

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets per month

Delivery Time : Within 50 days after receiving the deposit

Packaging Details : Suitable for the sea shipment

Type : Z purlin roll forming machine

Use : Z purlin

Thickness : 1.2-3mm

Power(w) : 18.5kw

Warranty : 1 Year

Dimension(l*w*h) : 10m*1m*1.5m

Contact Now

Z section roll forming machine

Product Descriptions

1. The machine has simple structure and beautiful appearance, mainly adopts steel structure, and most of the screw is steel structure, which makes the whole machine flexible and sturdy.

2. All parts of the machine are from famous brands, which effectively guarantees the normal operation of the machine.

3. It adopts automatic fixed length forming cutting to ensure the length is accurate and the finished product is clear and not deformed.

4. The equipment is easy to install and suitable for factory production.

5. High efficiency, low noise.

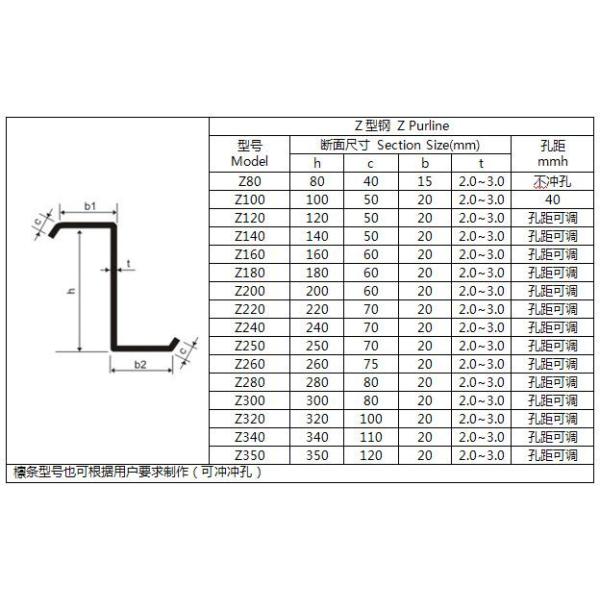

Profile drawing to design

Working Flow

Decoiler -- feeding and leveling -- hydraulic punching -- roll forming part -- hydraulic cutting -- runout table

Z Steel Frame 3mm 18.5kw Purlin Roll Forming Machine

Product Parameters

name	Specification
Raw material type	Steel coil/Galvanized coil
Thickness	1.5-3.0mm
Roller material	GCr15/Cr12
Shaft material	High Grade No.45 Forged
Forming Stations	16stations
Control type	PLC
Driven type	By chain
Main power	18KW-37KW
Cutting Blade Material	Cr12Mov

Main Components

No.	Item	Unit	Qty
1	Manual decoiler	set	1
2	Punching device	set	1
3	Main roll forming machine	set	1
4	Cutting device	set	1
5	PLC control box	set	1
6	Supporter table	set	2

Pictures

Z Steel Frame 3mm 18.5kw Purlin Roll Forming Machine
